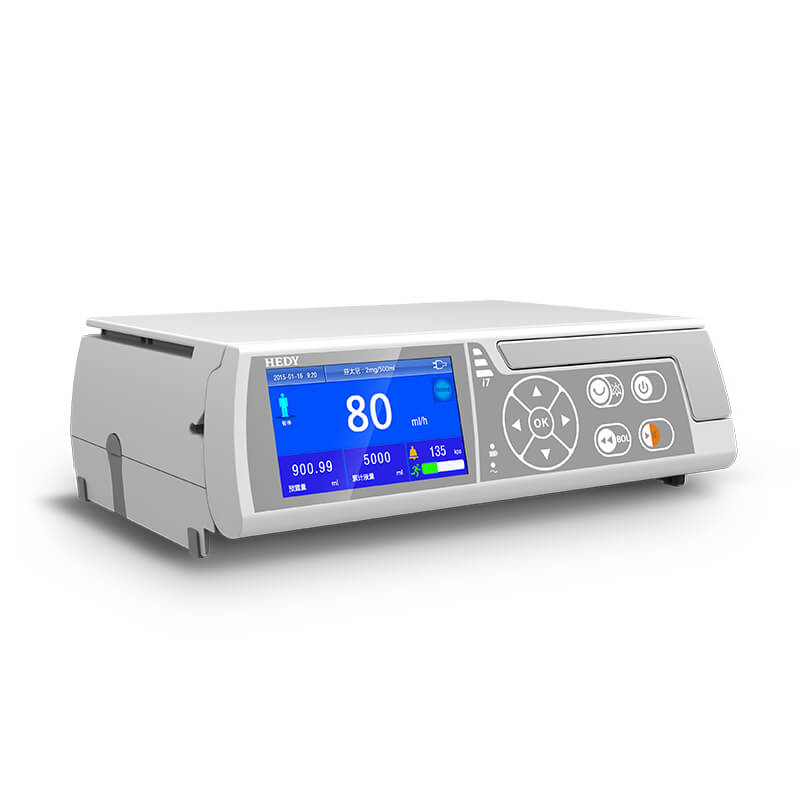

i7 plus / pro volumetric

Description:

The i7Series injection pump is a state-of-the-art model with the following technical characteristics:

Operating Rang

• Horizontal flat and compact design with antioxidant PBT material.
• Simultaneous "Titration" function: Ability to change the flow rate during infusion in steps of 0.01ml / h.
• Dynamic Pressure Monitoring (DPS): 11 levels of alarm scale adjustable.
• Automatic calculation of the supply scale, according to the various modes of operation.
• Models for I7 Plus:Rate mode ,V-T,R-T, Dose mode.
• Models for I7 Pro:Rate mode,V-T,R-T, Dose mode.
• Trapezia mode,Intermittent Mode,Loading Dose mode,Sequence mode.
• Flow compensation to avoid errors due to supply line stress.
• "Anti-bolus" function for patient safety.
• Drug library: For up to 2000 drugs (I7 Plus & I7 Pro models only).
• Incident recording: For up to 2000 incidents.
• Injection standby: Preset parameters remain saved.
• Audiovisual alarms: 9 levels of controlled sound.
• Screen: 3.5 inches, TFT color LCD touch screen, 16: 9 format
• Screen brightness: 1-9 levels adjustable.
• Information: System time, infusion mode, type IV set, drugs, battery capacity, infusion status, remaining time, (VTBI) volume to be infused, total volume, pressure limit, alarms.
• Function: Automatic toggle between day and night mode.
