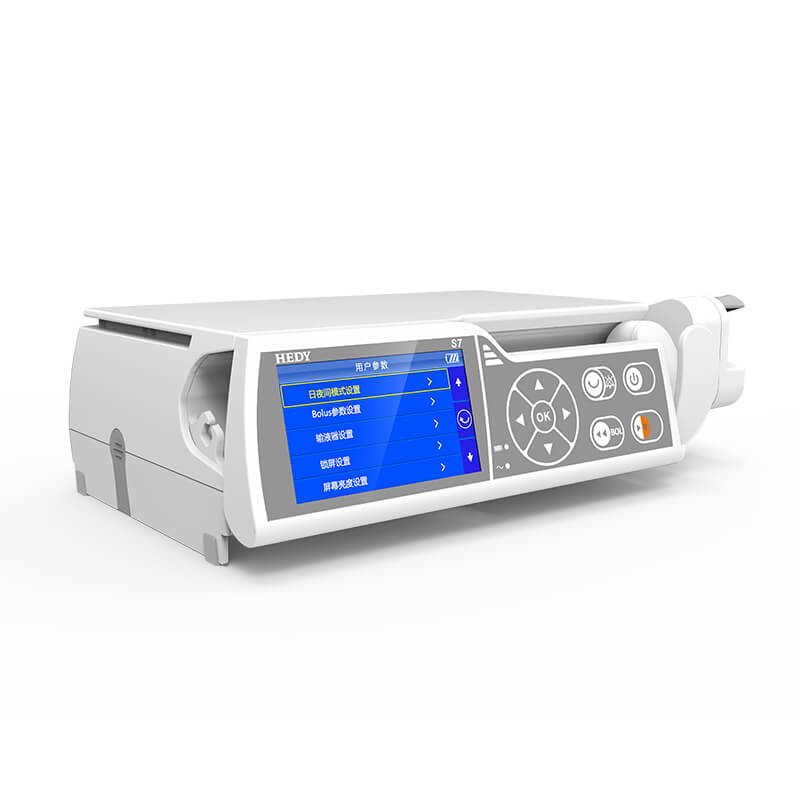

s7 plus / pro syringe

Description:

The infusion pump model s7 Series is a state-of-the-art technology, model, with the following technical characteristics :

Operating range

• Horizontal flat and compact design with antioxidant PBT material.
• "Titration" function: Ability to change the flow rate during injection.
• Dynamic Pressure Monitoring (DPS): 11 levels of alarm scale adjustable.
• Automatic calculation of the scale provided according to the various ways.
• Infusion Mode :Rate Mode,Volume-Time,Rate-Time,Dosage Mode.
• Flow compensation to avoid errors due to supply line stress.
• "Anti-bolus" function: for the safety of patients.
• Drug library: For up to 2000 drugs (only on S7 Plus & S7 Pro models).
• Incident recording: For up to 2000 incidents.
• Injection in standby: Preset parameters.
• Syringe model recognition: Automatic.
• Syringe size recognition: From 5ml to 60ml automatically.
• Audiovisual alarms: 9 levels of controlled sound.
• Natural characteristics
• Dimensions: 280 x 170 x 80 mm (mm)
• Weight: ≤1.8 kg kg
• Class: CF type, defibrillator protection, Class I
• Material: Antioxidant PBT material.
• Screen: 3.5 inches, TFT color LCD touch screen, 16: 9 format
• Screen brightness: 1-9 levels adjustable.
• Information: System time, infusion mode, type IV set, drugs, battery capacity, infusion status, remaining time, (VTBI) volume to be infused, total volume, pressure limit, alarms.
• Function: Automatic switching between day and night mode day and night.
