IP-4050

Description:

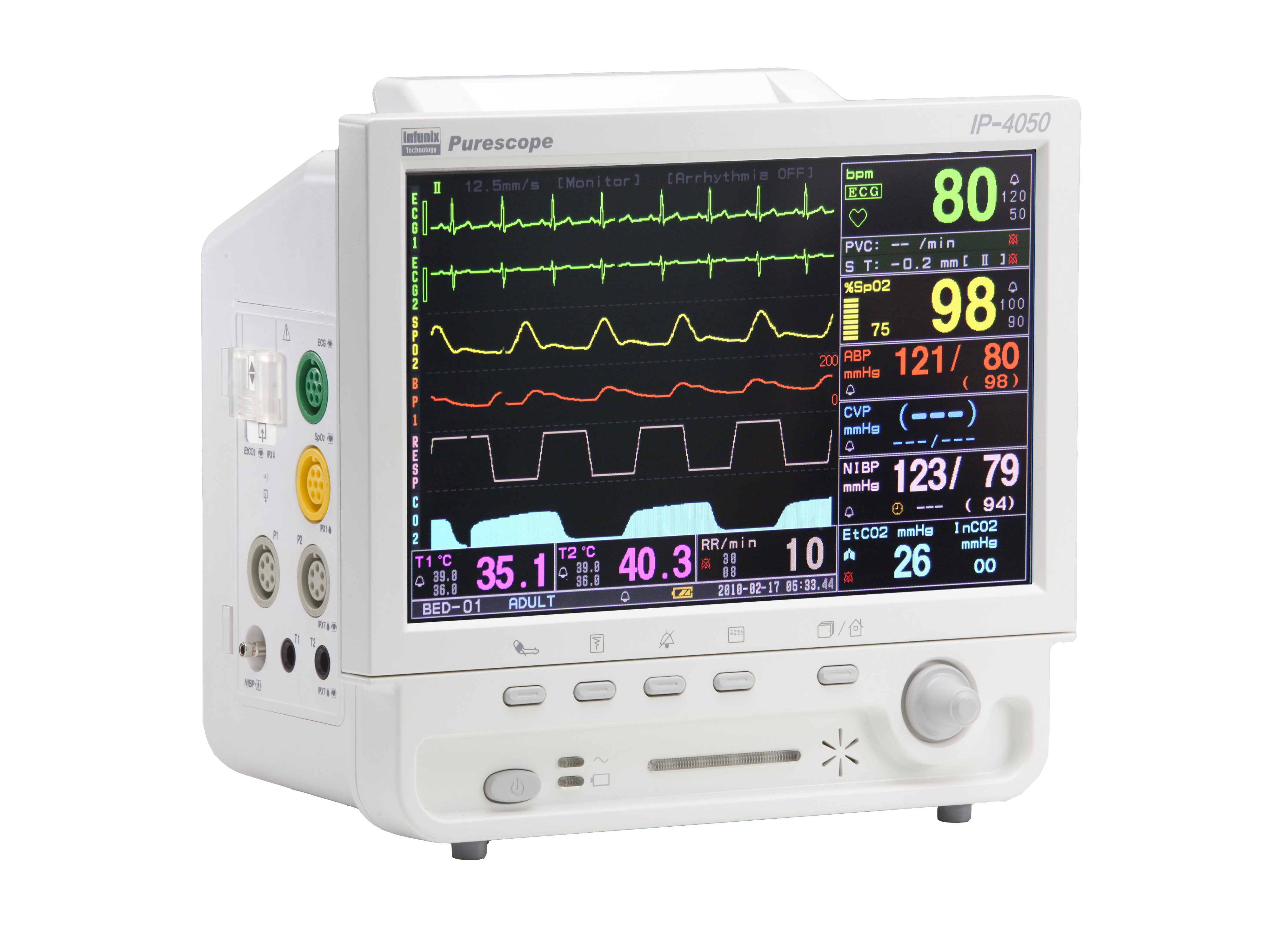

The IP-4050 is a multi-parameter patient monitor designed for simultaneous display of 6 waveforms and 7 parameters.

---

Features

• 10.4-inch high-resolution color screen (800x480), Widescreen (16:9) TFT Color LCD

• 2 ECG Channels / Oximetry (SpO₂) / Non-Invasive Blood Pressure

• 2 Invasive Blood Pressure Channels

• 2 Temperature Channels / Respiration

• Optional built-in EtCO₂ module

---

ECG Analysis

• Displays PVC and ST segment levels

• Pacemaker detection

• Detection of 12 types of arrhythmias

---

Innovative Oximetry (SpO₂) Module

• PureSET Technology

• Averaging Oximetry Technology (4/8/12/16 seconds)

---

EtCO₂ Module

• Optional built-in EtCO₂ unit

---

Advantages

Ease of Use

• Option to select display of 6 / 5 / 4 or 3 waveforms

• Customizable parameter font and colors

• Customizable waveform colors

Portability

• Up to 3 hours of battery-powered operation

• Lightweight at only 3 kg

Quick Start

• Boots in under 2 seconds

• 72 hours of trend data available in both table and graphical formats

• RS-232 or LAN port (optional)

• Multilingual interface (7 languages)

• Trolley stand and wall mount options

• Central Monitoring System (UDP Type)
